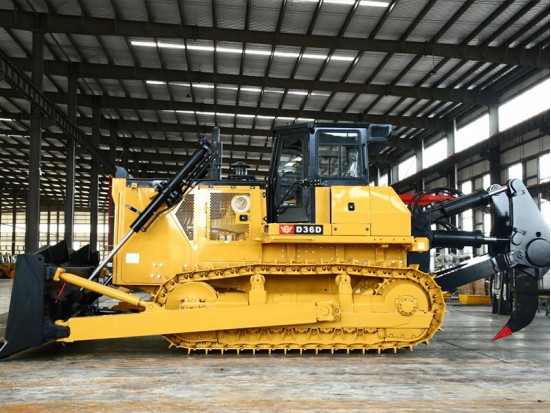

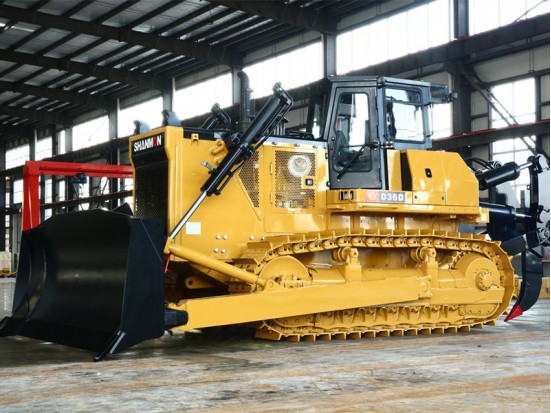

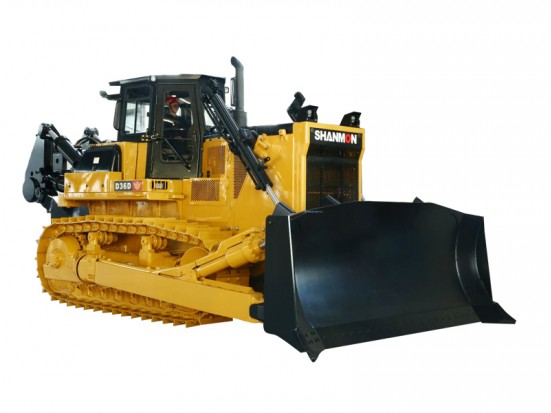

D36 |
|
Engine |
|
NTA855-C360S10 |
|
Rated power/speed |
KW(HP)/rpm |
257（350）/2000 |
|
Emission standards |
|
T2 |
|
Working mass |
KG |
37200 |
|
Working mass (with looser) |
KG |
40600 |
|
Ground Specific Pressure |
Kpa |
91 |
|
Overall dimensions |
|
|
|
Total length |
mm |
6535 |
|
Total Width |
mm |
4150 |
|
Total Height |
mm |
3515 |
|
Traveling performance |
|
|
|
Forward speed |
Km/h |
F1:0-3.6 |
|
F2:0-6.6 |
||
|
F3:0-11.5 |
||
|
Backward speed |
Km/h |
R1:0-4.4 |
|
R2:0-7.8 |
||
|
R3:0-13.5 |
||
|
Climbing ability |
° |
30 |
|
Min. Ground Clearance |
mm |
405 |
|
Chassis system |
|
|
|
Track center distance |
mm |
2140 |
|
Track plate width |
mm |
560(660/710) |
|
Ground length |
mm |
3150 |
|
Fuel tank capacity |
|
|
|
Fuel tank |
L |
600 |
|
Working hydraulic oil tank |
L |
128 |
|
Working device |
|
|
|
Blade type |
|
Straight tilting shovel |
|
Blade Depth |
mm |
540 |
|
Loader type |
|
Single-tooth |
|
Loosening depth |
mm |
1250 |
